A Rainy Tuesday Diagnostic Tale
It was 4:45 PM on a dreary Tuesday in Seattle. The shop bay lights were buzzing, fighting the gloom, and a flatbed tow truck rolled up with a 2006 Ford F-150 on the back. The owner, a guy named Dave who looked like he hadn’t slept in two days, walked over. He told me he was driving on the I-5 when the truck just “died like someone turned the key off.” He tried cranking it, but it just spun over without firing.
I grabbed my scan tool and checked for codes—nothing stored. Crank sensor? Maybe. Cam sensor? Possible. But my gut said fuel. I grabbed a can of brake cleaner, popped the hood, and gave a quick squirt into the throttle body while Dave tried to crank it. The truck fired up for a split second and died. That told me everything: spark was good, compression was likely fine, but the fuel system was bone dry. Dave needed a fuel pump, but before we dropped the tank, we had to prove it beyond a shadow of a doubt.
This is the situation most of you face in your driveway. Your car cranks but won’t start. You’re terrified it’s the pump because dropping a fuel tank is a nightmare. Before you throw a $300 part at it, you need to know exactly how to test fuel pump issues. Let’s dig into the methods I use in the shop, adapted for your home garage.
If you are unsure if your symptoms point to the pump, learn about [fuel pump problems, pump failure symptoms, fuel pressure testing, electrical diagnostics](fuel-pump-problems-diagnosis,bad-fuel-pump-symptoms,fuel-pressure-regulator-test,electrical-system-diagnosis) before starting.
Understanding the Beast: How Electric Fuel Pumps Work
Most modern vehicles use an electric fuel pump mounted inside the fuel tank. Why inside? Because gasoline acts as a coolant. If you run your tank below 1/8th constantly, the pump runs hot and wears out the brushes. I’ve seen pumps fail at 60,000 miles because the owner drove it on fumes, and I’ve seen originals last 250,000 miles because the owner never let it go below half a tank.
The pump is basically a small, high-speed turbine. When you turn the key to “Run,” the Engine Control Module (PCM) activates the fuel pump relay for 2-5 seconds to pressurize the system. If the engine doesn’t start immediately, the computer shuts it off to prevent a fire. Once the engine is cranking and the PCM sees a RPM signal, it keeps the pump running.
Tools & Materials List
You don’t need a $5,000 Snap-on scanner for this. Here is the reality of what you need:
- Multimeter (Digital Volt Ohm Meter – DVOM): Essential. If you don’t have one, buy a decent Innova or AstroAI for $30-$50. You cannot diagnose electricity without measuring it.

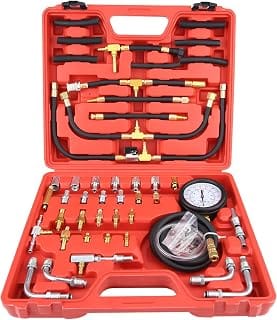

- Fuel Pressure Gauge Kit: *Optional but highly recommended.* You can rent these from AutoZone or O’Reilly Auto Parts for free (deposit required). Make sure the kit has adapters for Schrader valves (like a tire valve) and threaded fittings.
- Screwdrivers & Socket Set: Mostly 10mm, 13mm, and Phillips #2. You’ll need these to access relay boxes and fuel lines.
- Helper: Someone to turn the key while you are at the back of the car or under the hood.
- Starting Fluid (Carb Cleaner): Use with extreme caution. This is the “old school” mechanic trick.
- Safety Glasses & Gloves: Fuel is nasty stuff. Don’t get it in your eyes.
Method 1: The Audible “Listen” Test (Zero Tools)
This is the first thing I do, just like I did with Dave’s F-150. It eliminates the obvious. If the pump is dead silent, it’s either dead, has no power, or the ground is bad.
Listen. You should hear a distinct, high-pitched whirring or humming sound that lasts for about 2 seconds and then stops.
[If you heard the hum]: The pump is spinning. It *might* be weak, but it’s getting power and trying to work. Move to Method 2.
[Silence]: The pump is not running. It could be dead, or it could be an electrical issue. Move to Method 4 (Relay Test) immediately.
Method 2: The “Spritz” Test (The Old School Method)
If your engine cranks but won’t start, we need to prove it’s a fuel issue and not a spark issue.
Analyze.
- It fires and runs for a second: You have spark and compression. You have a fuel delivery issue (bad pump, clogged filter, or no injector pulse).
- It cranks and cranks with zero change: You likely have an ignition issue (no spark) or a catastrophic mechanical failure. The pump is likely not the primary culprit, or the engine is flooded.
Method 3: The Fuel Pressure Test (The Definitive Method)
While the prompt asks for methods without special tools, a fuel pressure gauge is the only way to be 100% sure. A “humming” pump doesn’t mean it’s making pressure. I’ve pulled pumps that screamed like a banshee but couldn’t build more than 10 PSI because the internal check valve was shot or the impeller was stripped.
Check Key-On Pressure. Turn the key to “ON.” You should see the gauge jump up immediately.
Typical Specs:
- Port Injection (Most older cars/trucks): 35 – 45 PSI (Key On), 30 – 40 PSI (Idle).
- GM TBI (Throttle Body Injection): 9 – 13 PSI.
- Ford Sequential Injection: 30 – 45 PSI.
Check your under-hood sticker for the exact PSI.
Method 4: The Fuel Pump Relay Swap (Free Electrical Check)
If your pump is silent in Method 1, don’t just assume the pump is dead. The relay is a high-failure item. The relay is usually located in the fuse box under the hood or under the dashboard.
Method 5: Voltage Drop Testing (The “Master Tech” Method)
This separates the pros from the parts-changers. If the pump isn’t running, you need to know if the *wiring* is the problem. A fuse can look good but be blown internally. A ground can be corroded.
Identify wires. You’ll need a wiring diagram for your specific car (Google is your friend). Usually, you have:
- Grey/Black (Power 12V)
- Black (Ground)
- Purple/White (Fuel Gauge Sender – ignore this)
- …plus one other.
Test for Ground. Set your multimeter to Volts DC. Put the Red lead on the Battery Positive terminal. Put the Black lead into the suspected Ground pin of the pump connector (you may need a “back-probe” pin to slide into the wire seal). Have a helper turn the key to “ON”.
Good Reading: Less than 0.5V.
Bad Reading: High voltage (like 12V) means the ground is broken.
Test for Power. Put the Black lead on Battery Negative. Put the Red lead into the Power wire at the connector. Turn key “ON”.
Good Reading: Battery Voltage (approx 12.6V).
Bad Reading: 0V or significantly lower (like 9V). If you have 12V at the battery but only 9V at the pump, you have a high-resistance connection (corrosion) somewhere in the harness.
Troubleshooting: “If X, Check Y”
- If the pump runs but you have 0 PSI on the gauge: Check your fuel filter (if external) or the sock filter on the pump bottom. The pickup screen might be clogged with rust from the tank.
- If pressure builds but drops instantly: You have a leaking check valve inside the pump assembly. This causes hard starts, especially when the car is hot.
- If pressure is fine but car won’t run: Check your injectors. Are they getting the “Pulse” signal? Use a “noid light” to check the injector harness.
- If you have power and ground at the tank but silence: The pump motor is dead. Time to drop the tank.
Technical Specifications & Cost Analysis
Replacing a fuel pump is straightforward labor-wise, but accessing it can be a nightmare due to rusty straps and full fuel tanks.
Cost Breakdown: Typical Chevy Silverado (2007-2013)
| Part Type | Brand | Estimated Cost | Notes |
|---|---|---|---|
| Complete Pump Module | ACDelco (OEM) | $280 – $350 | Includes fuel level sender and pressure regulator. Best longevity. |
| Complete Pump Module | Delphi (Aftermarket) | $140 – $190 | Very reliable aftermarket choice. Often made in same factory. |
| Complete Pump Module | MasterPro/Value Line | $60 – $90 | Avoid. I replaced two of these on a Ford Focus in one year. The wiring pins are brittle. |
| Professional Labor | Shop Rate | $400 – $600 | Book time is usually 2.0 – 3.5 hours depending on tank rust. |
FAQ Section
A: If it’s failing intermittently, you can get stranded. A failing pump often works fine when cold but loses pressure as it heats up (electrical resistance increases). I don’t recommend driving it. When it dies, it usually dies at the worst possible time—like in the middle of an intersection.
A: If you do it yourself, expect to pay $100-$300 for the part. If you go to a dealer or shop, total cost usually lands between $600 and $900 depending on the vehicle. High-end German cars (BMW/Audi) where the pump is located under the rear seat are cheaper labor-wise than trucks where you have to drop a rusty 35-gallon tank.
A: Often, no. If the pump is weak, the engine will run lean (too much air, not enough fuel). This might trigger a P0171 (System Too Lean) or P0300 (Random Misfire), but the code itself doesn’t say “Fuel Pump.” You have to diagnose the cause of the lean condition.
A: Heat and lack of maintenance. The fuel cools the pump. Running the tank below 1/4 causes the pump to run hot. Also, cheap gas with high ethanol content and sediment accumulation over 10 years kills the electric motor brushes.
A: Difficulty: Moderate (6/10). The pump itself is easy to swap. The hard part is dealing with a heavy fuel tank full of gasoline. If the tank straps are rusted (common on Rust Belt cars), this job becomes dangerous and difficult without a lift and a transmission jack to support the tank.
Conclusion
Testing a fuel pump isn’t rocket science, but it does require a systematic approach. Don’t just throw parts at it. Start with the free Listen Test, move to the Relay Swap, and if you are serious about doing the job right, buy or rent a fuel pressure gauge. That $50 rental fee can save you hundreds of dollars in misdiagnosed parts.
For Dave and his Ford F-150, the diagnosis was a dead pump (silent on the listen test, 0 PSI at the rail, but 12V power at the connector). We dropped the tank, installed a high-quality Delphi unit, and he was back on the road by noon the next day. You can do this too. Grab your multimeter, stay safe, and get your hands dirty.
